ATW-8304 Curve neck design wall-mounted automatic sensor tap with temperature control

ATW-8304 Sensor tap

ATW-8304Tube design wall-mounted automatic sensor tap with under mount infra red eye

Product Info

  • Features
  • Technical Information
  • Dimension
  • Contents
  • Functions
  • Temperature Control
  • Remote Control

Wall mounted sensor tap
Integrated infrared sensor circular frame
With integrated manual temperature control knob
Conserve water and Hygienic
Mains and Battery-operated (AC+DC)
Hands free infrared activation
Exquisite and stylish design
Solid-brass construction

Diameter of 'inlet' connections (hot and cold): G1/2” male
Diameter of 'outlet' flexible pipe (inside the control box): G1/2”
Water pressure range: 0.7 (Min) - 8 Bar (Max)
Voltage (AC only): AC 220V-240V (6V Output)
Power consumption: =0.3MW
Sensing distance: 17-31cm
Respond time: 1 Second
Silent Consumption: 0.003W
Environment Temperature: 1-45 C
Flow Rate: 5L/Per minute
Pipe Threading: British Standard Whitworth (BSW)

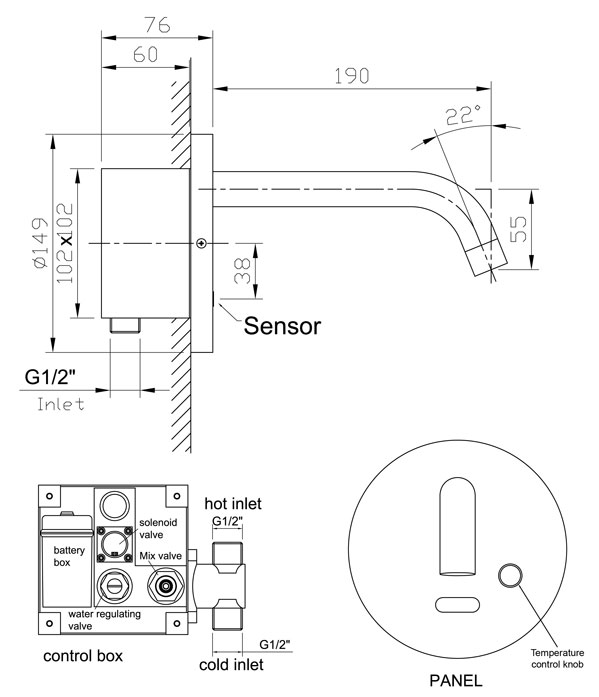

ATW-8304 Dimension

1x Curve-neck Tap
1x Sensor Plate
1x Control Box (*battery compartment inside)
1x Transformer (*supplied only with AC version)
1x Temperature control knob
